Sony Bravia KDL-46HX750 3D LED LCD HDTV Review

Connectivity

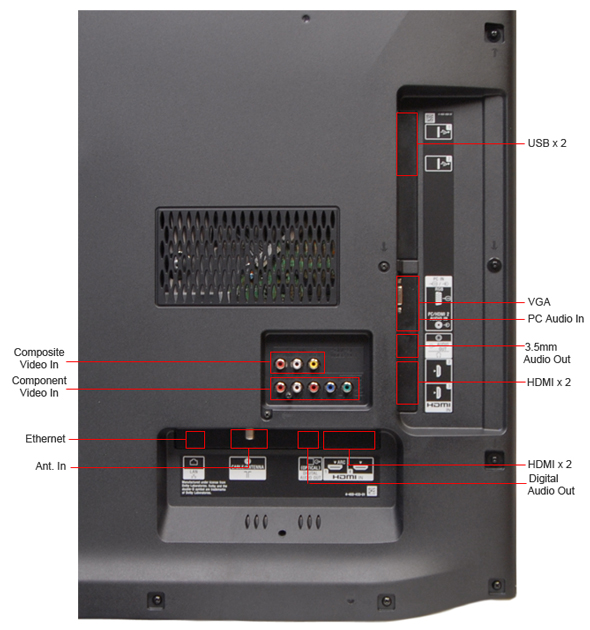

The inputs and outputs for the Sony Bravia KDL-46HX750 are located on the left. On the side of the TV, you can find two USB ports, a VGA port, an analog audio input, a 3.5mm headphone jack, and two HDMI ports. Located next to these are composite and component inputs, which are separate and not shared – a rarity on TVs these days. Below the composite and component inputs, you will find an ethernet jack, an antenna input, an S/PDIF output, and two more HDMI ports.

The TV swivels at a 15° angle, which makes accessing most ports easy. The ports located towards the bottom (ethernet, antenna, S/PDIF, HDMI) are slightly harder to access since they face down and you will not be able to see them. As such, this causes for fumbling around with cables while trying to figure out which way they go in.
