Sony Bravia XBR-52HX909
Previous: Page 7
CalibrationNext: Page 9
Remote ControlConnectivity
Four HDMI inputs, and tons of additional relevant ports. The sheer number of ports has been known to intimidate the meek.
Connectivity (0.00)
The Sony XBR-52HX909 has plenty of connectivity options to get your home theater system up and running. Notable ports include: 4 HDMIs, 2 component AV inputs, 1.5 composite AV inputs (one of these is shared with the component AV port), LAN ethernet, optional WiFi, and a USB port.

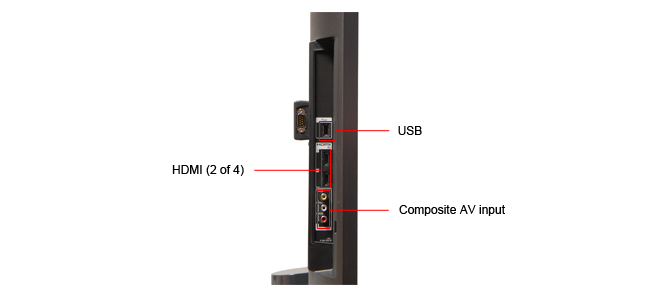

The pictures above and below show how the ports are laid out on the TV. Most are in the back, but a few stick out on the side so you can make quick-changes for devices like cameras, camcorders, and USB thumb drives.
Output Ports (2.0)
The Sony XBR-52HX909 has two output ports, an analog audio out and a digital audio out. This is standard for most HDTVs.
Other Connections (7.0)
The Sony XBR-52HX909 has a LAN port for connecting to Sony’s impressive array of streaming content. With a separately purchased USB dongle, you can also connect through WiFi, eliminating one of the many wires that run across the floor.
Media (1.0)
The Sony XBR-52HX909 has a USB port, and with a thumb drive, can play back photos, videos, and music.
The Sony XBR-52HX909’s ports are detailed below, compared to similar TVs.
| Connectivity Comparison | ||||
|---|---|---|---|---|
| Sony XBR-52HX909 | Sony XBR-52LX900 | Samsung UN55C7000 | Panasonic TC-P50VT20 | |
| HDMI | 4 | 4 | 4 | 4 |
| Component | 2 | 1 | 1 | 2 |
| Composite | 2 | 1 | 1 | 2 |
| S-Video | 0 | 0 | 0 | 0 |
| VGA | 1 | 1 | 1 | 1 |
| Analog Audio In | 4 | 3 | 2 | 4 |
| Digital Audio Out | 1 | 1 | 1 | 1 |
| Analog Audio Out | 1 | 0 | 1 | 0 |
| Ethernet | None | Yes | Yes | Yes |
| Wi-Fi | Yes | Yes | Yes | Yes |
| USB | Yes | Yes | Yes | Yes |
| Memory Card Types | None | None | None | SD/SDHC/SDXC/SDXC |
| DLNA | Unknown | Yes | Yes | Yes |
Placement (8.00)
The ports are generally well-placed. Those located on the side are very easy to access, and those on the back are easier to reach thanks to a swivel base.
| Other Models in the XBR-xxHX909 Series |
|---|
| For more information on other models in this series, check our Series Comparison Page. |
 Sony Bravia XBR-46HX909 46 in. |
